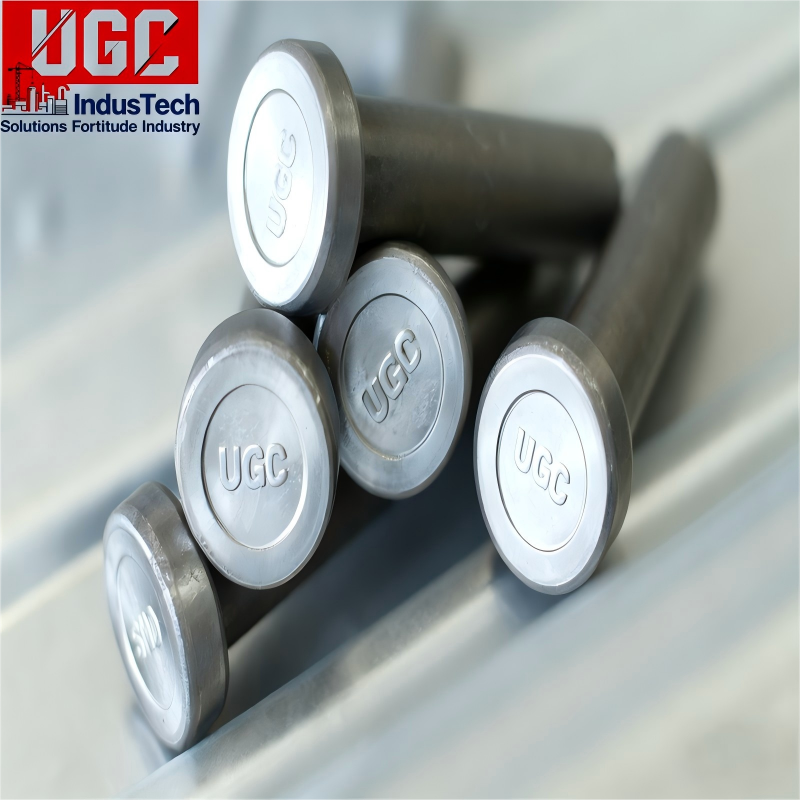

Shear Stud Connector
Shear connectors are typically used in composite steel construction for holding concrete slabs to steel members to resist shear forces and increase shear loading capacity in steel buildings. bridges. columns caissons. containment liners. etc. They also act as embedment anchors on miscellaneous embedded plates. frames. angles.strip plates. attachments and connections.Options for Welding Through Metal Deckare available for 3/4” diameter and smaller.
| SHEAR STUD PRODUCING SPECIFICATION | |||||||
| d1-0.4 | 10 | 13 | 16 | 19 | 22 | 25 | |
| d5±0.3 | 19 | 25 | 32 | 32 | 35 | 41 | |
| d3±0.3 | 13 | 17 | 21 | 23 | 29 | 31 | |
| h3±0.5 | 7 | 8 | 8 | 10 | 10 | 12 | |
| h4 | 2.5 | 3 | 4.5 | 6 | 6 | 7 | |
| L1±1.5 | 40-105 | 40-160 | 40-225 | 40-300 | 60-300 | 60-300 | |
| Burn off | 3 | 3 | 4 | 5 | 5 | 6 | |

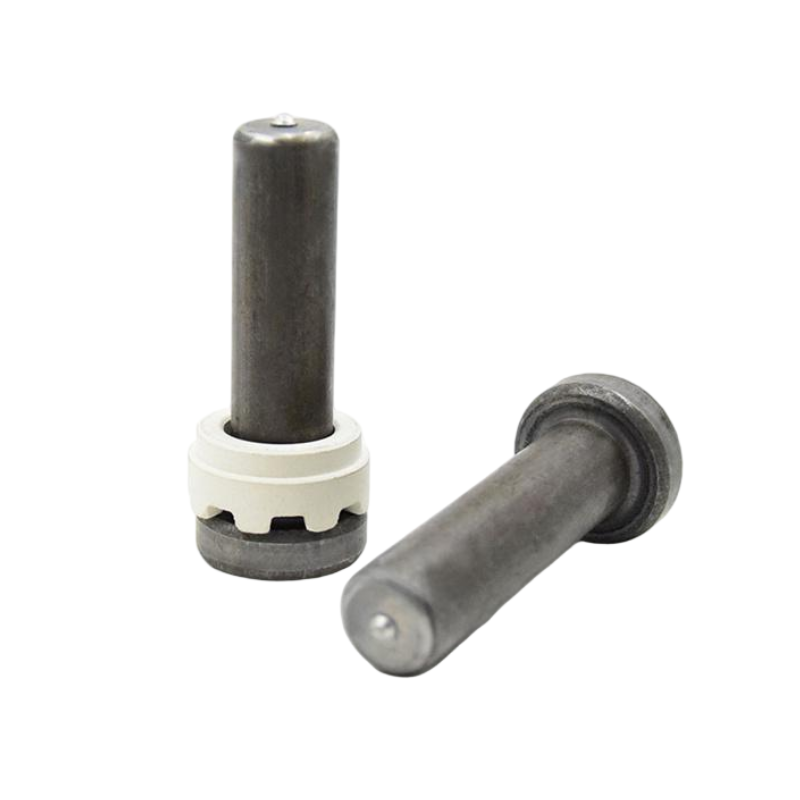

| Ferrule | UF10 | UF13 | UF16 | UF19 | UF22 | UF25 | |
| G&L Support OEM Service | |||||||
| *Burn Off: Burn off lengths shown are for welding to bare steel. For burn off values and other details when studs are welded through metal deck to steel see WELD THROUGH DECK SPECIFICATION SHEET | |||||||
| Material & Mechanical Properties ： | |||||||
| Materials | Mild Steel SWRCH18A / ML15Al | Stainless Steel 304HC / 316Cu | |||||
| Tensile strength min. | 450N/mm2 | 500N/mm2 – 780N/mm2 | |||||
| Yield strength (Rp0.2) min. | 350N/mm2 | 350N/mm2 | |||||
| Elongation (A5) min. | 15% | 20% | |||||
| Wire Surface Treatment | Phosphate Coating | Plain Coating | |||||
Shear Connectors are meet the requirement of China nuclear power station Quality Assurance Grade 1 (QA1)
