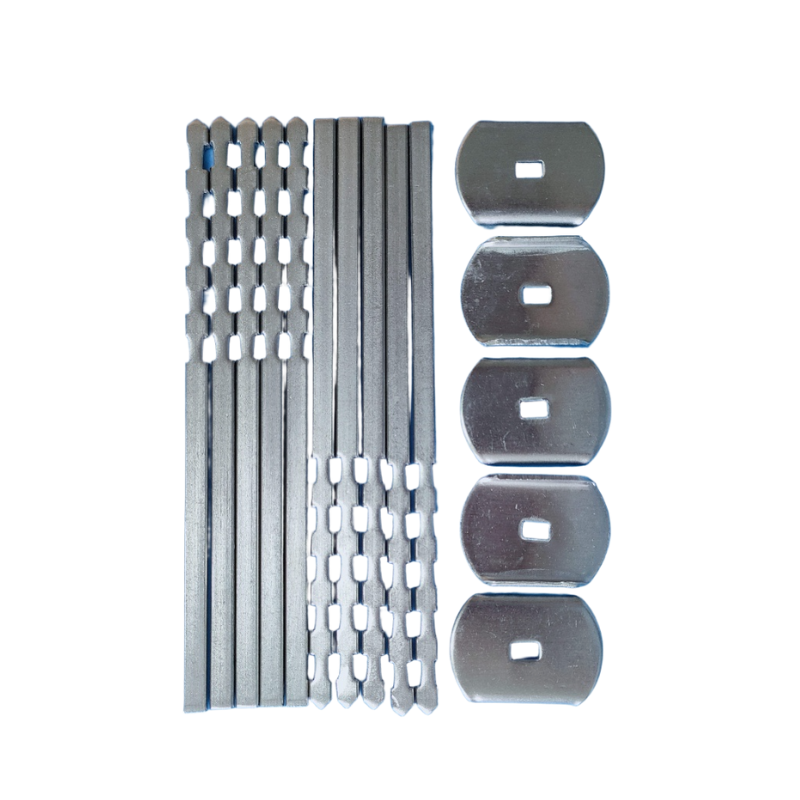

Refractory Insul twist Lock Anchor
High-performance twist lock anchoring system for refractory and insulation linings in industrial furnaces, boilers, kilns, and high-temperature equipment. Quick installation with superior holding power.
Revolutionary Twist Lock Design for High-Temperature Applications
The Refractory Insul Twist Lock Anchor represents a significant advancement in anchoring technology for refractory and insulation linings. This innovative design features a unique twist lock mechanism that provides secure, reliable anchoring with significantly reduced installation time compared to traditional anchor systems.
Engineered specifically for high-temperature environments, these anchors maintain their structural integrity and holding power even under extreme thermal cycling conditions. The twist lock design ensures positive engagement with both the substrate and the refractory or insulation material, preventing movement and detachment during thermal expansion and contraction.
High Temperature Resistance
Designed to withstand temperatures up to 1200°C (2192°F) depending on material grade, maintaining structural integrity under thermal cycling.
Quick Installation
Twist lock design allows for rapid installation without specialized tools, reducing labor time by up to 60% compared to traditional anchors.
Superior Holding Power
Positive locking mechanism provides excellent pull-out resistance and prevents rotation or displacement of lining materials.
Versatile Applications
Suitable for both refractory and insulation linings in furnaces, boilers, kilns, incinerators, and other high-temperature equipment.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Material Specifications
Available in various high-temperature alloys to suit specific application requirements and temperature ranges.
304/316 Stainless Steel – Standard High-Temperature Grade
304/316 stainless steel anchors provide excellent corrosion resistance and good high-temperature strength for most refractory and insulation applications up to 870°C (1600°F).
| Property | Specification | Application Benefit |
|---|---|---|
| Material Grade | AISI 304, 316, 321, 347 | Excellent corrosion resistance and oxidation resistance |
| Maximum Temperature | 870°C (1600°F) | Suitable for most industrial furnace and boiler applications |
| Corrosion Resistance | Excellent (especially 316 for chloride environments) | Long service life in corrosive atmospheres |
| Tensile Strength | 515 MPa (75 ksi) min at room temperature | Good mechanical strength for anchoring applications |
| Thermal Expansion | 17.2 μm/m·°C (9.6 μin/in·°F) | Compatible with most refractory materials |
| Primary Applications | Industrial boilers, heat treatment furnaces, incinerators, process heaters, general refractory lining | |
Inconel 600/601 – Premium High-Temperature Alloy
Inconel 600/601 anchors provide superior high-temperature strength and oxidation resistance for extreme temperature applications up to 1150°C (2100°F).
| Property | Specification | Application Benefit |
|---|---|---|
| Material Grade | Inconel 600, 601, 625 | Exceptional high-temperature strength and oxidation resistance |
| Maximum Temperature | 1150°C (2100°F) | For extreme temperature applications like kilns and high-temperature furnaces |
| Oxidation Resistance | Excellent (forms protective Cr2O3 scale) | Resists scaling and degradation in high-temperature oxidizing atmospheres |
| Tensile Strength | 550-690 MPa (80-100 ksi) at room temperature | Maintains strength at high temperatures |
| Thermal Expansion | 13.3 μm/m·°C (7.4 μin/in·°F) | Lower expansion reduces thermal stresses |
| Primary Applications | Ceramic kilns, glass melting furnaces, high-temperature reactors, petrochemical cracking furnaces, aerospace applications | |
Carbon Steel – Economical Option for Lower Temperatures
Carbon steel anchors provide a cost-effective solution for applications with lower temperature requirements up to 540°C (1000°F).
| Property | Specification | Application Benefit |
|---|---|---|
| Material Grade | ASTM A36, A285, A515 | Cost-effective with good mechanical properties |
| Maximum Temperature | 540°C (1000°F) | Suitable for lower temperature insulation applications |
| Corrosion Resistance | Fair (requires protective coating for corrosive environments) | Can be galvanized or painted for additional protection |
| Tensile Strength | 400-550 MPa (58-80 ksi) | Adequate strength for many insulation applications |
| Thermal Expansion | 11.7 μm/m·°C (6.5 μin/in·°F) | Lower expansion coefficient than stainless steel |
| Primary Applications | Industrial insulation, ductwork, low-temperature furnaces, boiler casing, HVAC equipment | |
Special Alloys – Custom Solutions for Extreme Conditions
Special alloys including RA253MA, 310S, and other high-performance materials for applications with specific chemical or thermal requirements.
| Property | Specification | Application Benefit |
|---|---|---|
| Material Grade | RA253MA, 310S, 330, Haynes alloys | Tailored for specific high-temperature or corrosive environments |
| Maximum Temperature | Up to 1200°C (2192°F) | For the most demanding high-temperature applications |
| Special Properties | Carburization resistance, sulfur resistance, cyclic oxidation resistance | Specifically engineered for challenging process environments |
| Tensile Strength | 600-1000 MPa (87-145 ksi) depending on alloy | High strength maintained at elevated temperatures |
| Thermal Expansion | 14-18 μm/m·°C (7.8-10.0 μin/in·°F) | Engineered to match specific refractory systems |
| Primary Applications | Cement kilns, coke calcining, chemical processing, waste incineration, specialized heat treatment | |
Industrial Applications
Refractory Insul Twist Lock Anchors are used in a wide range of high-temperature industrial applications.
Industrial Furnaces & Heaters
Securing refractory and insulation linings in heat treatment furnaces, forging furnaces, and process heaters across various industries.
Boilers & Incinerators
Anchoring refractory and insulation materials in power plant boilers, waste-to-energy plants, and industrial incinerators.
Kilns & Dryers
Securing linings in cement kilns, lime kilns, ceramic kilns, and industrial drying equipment.
Petrochemical & Refining
Anchoring insulation on reactors, reformers, crackers, and other high-temperature equipment in refineries and chemical plants.
Advantages Over Traditional Anchors
60% Faster Installation
Twist lock design eliminates welding, bolting, and complex installation procedures, reducing labor time by up to 60% compared to traditional anchors.
Superior Holding Power
Positive mechanical lock provides 30-50% higher pull-out resistance than conventional V-anchors or stud welding systems.
Excellent High-Temperature Performance
Maintains structural integrity and holding power under extreme thermal cycling conditions up to 1200°C (2192°F) with appropriate alloys.
Reduced Total Cost
Lower installation costs, reduced maintenance, and extended lining life provide significant total cost savings over the equipment lifecycle.
Technical Specifications
Complete technical data for Refractory Insul Twist Lock Anchors.
Dimensions & Sizes
- Anchor Lengths: 50mm to 300mm (2″ to 12″)
- Wire Diameter: 3mm to 8mm (1/8″ to 5/16″)
- Anchor Types: V, Y, Hex, Custom shapes
- Spacing: 150mm to 300mm (6″ to 12″) typical
- Density: 4-16 anchors per m² (0.4-1.5 per ft²)
Performance Specifications
- Pull-Out Strength: 500-2000 N per anchor
- Temperature Range: Up to 1200°C (2192°F)
- Thermal Cycling: Excellent resistance
- Vibration Resistance: Superior to traditional anchors
- Installation Torque: 5-15 Nm (44-133 in-lb)
Material & Processing
- Available Materials: SS304, SS316, Inconel, Carbon steel
- Surface Finish: Mill finish, pickled, polished
- Welding: Optional weldable versions available
- Coating: Optional high-temperature coatings
- Certifications: Material test certificates available
