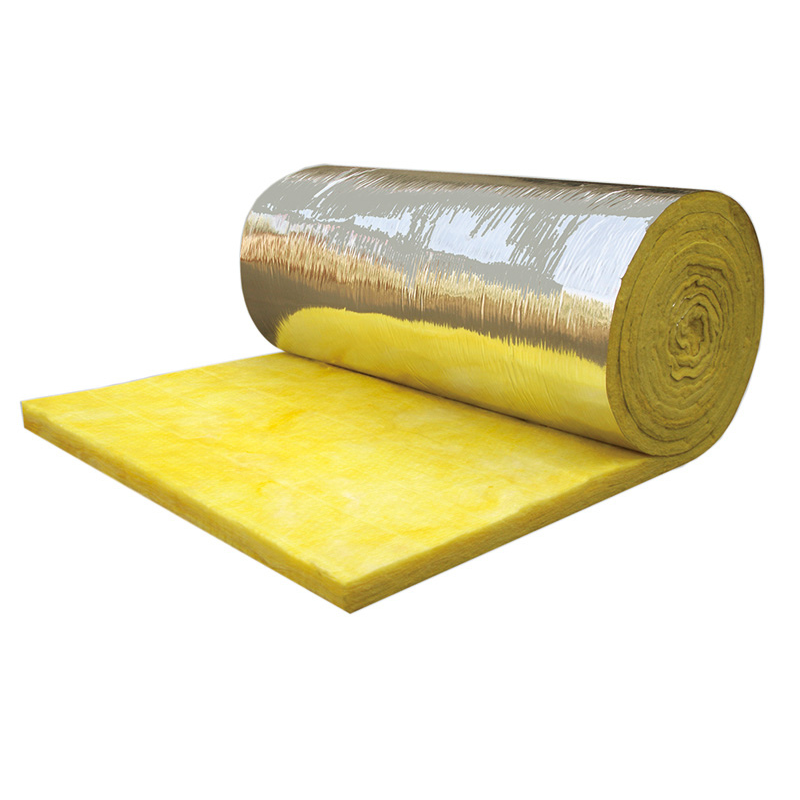

Aluminum Foil Faced Glasswool Blanket / FSK Glass Wool Roll
Product Type: Aluminum Foil Faced Glasswool Blanket, FSK Glass Wool Roll, Reflective Insulation Roll
Standards: AS/NZS 4859.1 · EN 13162 · ASTM C553 · GB/T 13350-2017 · JIS A 9504
Applications: HVAC Duct Insulation · Metal Building Roof & Wall · Thermal & Acoustic Control
About TARCO Industry — Your Trusted Aluminum Foil Faced Glasswool Blanket Manufacturer
As a professional glasswool blanket manufacturer, TARCO Industry produces high-quality aluminum foil faced glass wool roll insulation products. Furthermore, our factory operates a complete production line from fiber forming to foil lamination and final packaging. Consequently, this ensures consistent quality, competitive factory-direct pricing, and reliable global supply. Therefore, the company engineers its FSK faced glasswool blanket products to meet the rigorous demands of commercial, industrial, and residential insulation projects across international markets.
In addition, as a direct glass wool factory, TARCO Industry eliminates middlemen and provides OEM/ODM services. Moreover, we export our aluminum foil faced glasswool blanket and FSK glass wool roll products to customers in North America, Europe, Australia, New Zealand, Southeast Asia, the Middle East, and Oceania. Consequently, we provide full compliance documentation for each order. Specifically, you can explore our Glass Wool Board and Glass Wool Pipe Section for more insulation solutions.
Product Overview: Aluminum Foil Faced Glasswool Blanket & FSK Glass Wool Roll
Aluminum foil faced glasswool blanket (also known as FSK glass wool roll or foil faced glass wool insulation) represents a flexible, lightweight insulation material composed of fine glass fibers bonded with a thermosetting resin. Specifically, one side of the blanket is laminated with reinforced aluminum foil (FSK), creating a reflective vapor barrier. Consequently, this dual-layer structure delivers excellent thermal insulation, sound absorption, and moisture resistance.
TARCO Industry produces its aluminum foil faced glasswool blanket from high-quality quartz sand, limestone, dolomite, and recycled glass cullet. During production, we melt these raw materials at high temperatures and fiberize them into fine filaments. Ultimately, the aluminum foil facing is bonded to one side, providing a reflective surface that reduces radiant heat transfer.
Key Features & Benefits of FSK Faced Glasswool Blanket
Furthermore, the aluminum foil facing provides a reflective vapor barrier that significantly enhances thermal performance. Additionally, low thermal conductivity of 0.032–0.049 W/m·K effectively reduces heat loss and improves energy efficiency in HVAC systems and metal buildings. Moreover, the FSK facing acts as a radiant heat barrier, reflecting up to 95% of radiant heat. Consequently, water repellency greater than 98% prevents condensation and mold growth. Therefore, it is easy to cut, wrap, and install on irregular surfaces, reducing labor costs. In addition, it offers anti-corrosion, anti-aging, and resistance to microbial growth for long service life. Furthermore, it is available with low-VOC and formaldehyde-free binders for green building projects.
Technical Specifications — Aluminum Foil Faced Glasswool Blanket
Physical & Thermal Properties
Furthermore, the following table details the physical and thermal properties of our aluminum foil faced glasswool blanket.
| Parameter | Unit | Value / Range | Standard |
|---|---|---|---|
| Density | kg/m³ | 10 – 48 (customizable) | AS/NZS 4859.1 / EN 13162 / ASTM C167 |
| Thickness | mm | 25 – 200 | ASTM C167 / EN 823 |
| Width | mm | 600 / 1100 / 1150 / 1200 / 1250 | ASTM C167 |
| Length | m | 3 – 30 (roll) | ASTM C167 |
| Thermal Conductivity (λ) | W/m·K | 0.032 – 0.049 (at 25°C) | ASTM C518 / EN 12667 |
| Thermal Resistance (R) | m²·K/W | 0.56 – 3.22 | AS/NZS 4859.1 / ASTM C518 |
| Max. Working Temperature (Unfaced Side) | °C | 400 – 410 | GB/T 13350 |
| Max. Service Temperature (Foil Faced Side) | °C | 90 – 150 | AS/NZS 4859.1 / EN 13162 |
| Fiber Diameter | μm | 4.0 – 6.0 | GB/T 13350 |
| Water Repellency | % | > 98 | GB/T 13350 |
| Sound Absorption Coefficient | — | 1.03 (24kg/m³, 2000Hz) | GB/J 47-83 |
| Facing Type | — | Aluminum Foil (FSK) on One Side | — |
Fire Performance & Safety
Additionally, the following table outlines the fire performance and safety standards.
| Parameter | Result | Standard |
|---|---|---|
| Reaction to Fire (Unfaced) | Euroclass A1 / Class A Non-combustible | EN 13501-1 / ASTM E136 / AS 1530.1 |
| Reaction to Fire (Faced) | Euroclass C-s1,d0 | EN 13501-1 |
| Flame Spread Index | ≤ 25 | ASTM E84 |
| Smoke Developed Index | ≤ 50 | ASTM E84 |
| Water Vapour Sorption | < 1% by volume | ASTM C1104 |
| Odor Emission | No detectable objectionable odor | ASTM C1304 |
International Standards Compliance for Aluminum Foil Faced Glasswool Blanket
TARCO Industry manufactures and tests its aluminum foil faced glasswool blanket and FSK glass wool roll products in accordance with the following international standards, ensuring global market compatibility and regulatory compliance. Furthermore, you can verify these standards on the official websites of ASTM International, ISO, and Standards Australia.
AUSTRALIA / NEW ZEALAND AS/NZS 4859.1:2018 — Thermal Insulation Materials for Buildings
Furthermore, AS/NZS 4859.1:2018 establishes the joint Australian/New Zealand Standard that sets out general criteria, technical provisions, and methods of test for materials used for thermal insulation within buildings. Additionally, the Joint Technical Committee BD-058 (Thermal Insulation) prepared the standard and published it on 19 November 2018. Therefore, products compliant with this standard demonstrate conformity with the National Construction Code (NCC). Consequently, TARCO Industry tests its aluminum foil faced glasswool blanket for thermal conductivity, R-value determination, and fire hazard properties in accordance with AS/NZS 4859.1 at 23°C.
Standard AS 1530.1 — Combustibility Test for Materials
Specifically, AS 1530.1 represents the Australian Standard fire test method for determining the non-combustibility of building materials. Moreover, TARCO Industry classifies its unfaced glasswool blanket as non-combustible under AS 1530.1. Therefore, the aluminum foil facing is designed to complement the fire performance of the base blanket.
Regarding AS 3999 — Bulk Thermal Insulation Installation
In addition, AS 3999 provides installation guidelines for bulk thermal insulation in buildings. For example, it specifies that bulk insulation shall be dry when installed. Furthermore, additional installation guidance for TARCO aluminum foil faced glasswool blanket products can be found in AS 3999.
For NZS 4246:2016 — Installing Bulk Thermal Insulation in Residential Buildings
Additionally, NZS 4246:2016 provides guidance for the correct installation of bulk thermal insulation in residential buildings. Moreover, the standard covers installation around recessed luminaires and specifies a minimum clear space of 25 mm. Therefore, TARCO Industry installs its FSK glass wool roll in accordance with NZS 4246:2016 requirements.
EUROPE EN 13162:2012+A1:2015 — Thermal Insulation Products for Buildings
Furthermore, EN 13162 is the harmonized European Standard that specifies requirements for factory-made mineral wool (MW) thermal insulation products. Additionally, products certified under EN 13162 fall under the Construction Products Regulation (EU) No 305/2011 (CPR). Moreover, TARCO Industry aluminum foil faced glasswool blanket complies with EN 13162:2012+A1:2015, with declared thermal conductivity values (λD) ranging from 0.032 to 0.049 W/m·K.
Regarding EN 13501-1:2018 & CPR (EU) No 305/2011
Consequently, EN 13501-1 represents the European Standard for the fire classification of construction products. Therefore, under this standard, aluminum foil faced glasswool blanket achieves Euroclass C-s1,d0 for faced variants. Additionally, TARCO Industry provides full CE documentation and Declaration of Performance (DoP) for products supplied to European markets.
USA / NORTH AMERICA ASTM C553 — Mineral Fiber Blanket Thermal Insulation
Furthermore, ASTM C553 covers the classification, composition, physical properties, and dimensions of mineral fiber (glass) blanket thermal insulation for commercial and industrial applications. Additionally, it applies to surfaces operating between −18°C and 649°C. Moreover, the standard classifies mineral fiber blanket into seven types (I–VII) based on maximum use temperature and thermal conductivity. Therefore, TARCO Industry tests its aluminum foil faced glasswool blanket for odor emission, corrosiveness to steel, non-fibrous content, maximum use temperature, thermal conductivity, water vapor sorption, flexibility, and surface burning characteristics per ASTM C553 requirements.
CHINA GB/T 13350-2017 — Glass Wool and Its Products for Thermal Insulation
In addition, GB/T 13350-2017 represents the primary Chinese national standard covering loose glass wool, glass wool board, glass wool blanket, glass wool mattress, glass wool lamella, and glass wool pipe section. Specifically, it specifies terminology, classification, requirements, test methods, inspection rules, marking, packaging, transportation, and storage. Therefore, TARCO Industry manufactures aluminum foil faced glasswool blanket in full compliance with GB/T 13350-2017.
JAPAN JIS A 9504 — Man-Made Mineral Fibre Thermal Insulation Materials
Additionally, JIS A 9504 specifies requirements for thermal insulation materials used in industrial installations and building air-conditioning systems. Moreover, it covers glass wool blanket, board, pipe insulation, felt, and wave insulation. Consequently, TARCO Industry’s FSK glass wool roll products conform to JIS A 9504 requirements for density, thermal conductivity, fiber diameter, shot content, and formaldehyde emission characteristics.
Standard Sizes & Customization of Aluminum Foil Faced Glasswool Blanket
Furthermore, TARCO Industry offers a comprehensive range of standard sizes for aluminum foil faced glasswool blanket and FSK glass wool roll products. Additionally, we provide custom dimensions, densities, and facings upon request.
| Product | Density (kg/m³) | Thickness (mm) | Width (mm) | Length (m) |
|---|---|---|---|---|
| Standard FSK Glass Wool Roll | 10 – 48 | 25 – 100 | 1200 | 20 |
| HVAC Duct Blanket | 24 – 48 | 25 – 50 | 1200 | 20 – 30 |
| Metal Building Blanket | 10 – 24 | 50 – 150 | 1200 | 10 – 30 |
| Acoustic Blanket with Foil | 24 – 48 | 50 – 150 | 1200 | 10 – 20 |
Available Facings
Furthermore, we offer various facings to meet different application requirements. Specifically, the Aluminum Foil (FSK) facing serves as a reflective vapor barrier for HVAC and ducting. Additionally, the Reinforced Aluminum facing offers a high-durability vapor barrier. Moreover, Glass Tissue provides protective facing for industrial applications. Consequently, Black Tissue is suitable for acoustic and aesthetic applications. Finally, Unfaced option provides a standard bare glass wool roll with Euroclass A1 rating.
Applications of Aluminum Foil Faced Glasswool Blanket / FSK Glass Wool Roll
Furthermore, this product is widely used in HVAC duct insulation for thermal efficiency and condensation control, particularly for air conditioning ducts. Additionally, it is ideal for metal building roof and wall insulation, specifically for commercial, industrial, and agricultural metal building construction. Moreover, it serves Industrial Equipment such as boilers, tanks, and pipelines. Consequently, it is utilized for Acoustic Control in theaters, studios, offices, and hotels. Therefore, it is applied in Steel Structure Buildings for energy-efficient construction. In addition, it is used in Refrigeration for cold storage and chillers. Finally, it is applied in Transportation for train cars, marine vessels, and automotive acoustic insulation.
Packaging & Delivery
Furthermore, our packaging utilizes vacuum-packed rolls in PE film, with 2 rolls per bag or 1 roll per bag depending on dimensions. Additionally, a 40HQ container can hold approximately 1,800 – 2,500 m² depending on thickness and density. Moreover, the lead time is 7 – 15 days after deposit. Consequently, the port of loading is Tianjin, Qingdao, or Shanghai, China.
Why Choose TARCO Industry as Your Aluminum Foil Faced Glasswool Blanket Supplier
Furthermore, TARCO Industry is a professional glasswool blanket manufacturer with full production capabilities, which means no middlemen and competitive pricing. Additionally, our products are certified to AS/NZS 4859.1, EN 13162, ASTM C553, GB/T 13350-2017, and JIS A 9504 for global market access. Moreover, we provide OEM/ODM services for density, thickness, width, facing, and packaging. Consequently, our production is ISO 9001-certified with batch testing and third-party inspection support. Therefore, we serve customers in North America, Europe, Australia, New Zealand, Southeast Asia, the Middle East, and Oceania. Finally, we offer short lead times and efficient logistics from major Chinese ports.
Frequently Asked Questions (FAQ)
What is the difference between aluminum foil faced glasswool blanket and unfaced glasswool blanket?
Furthermore, aluminum foil faced glasswool blanket features a reflective FSK facing laminated to one side. Therefore, it provides an additional radiant heat barrier and vapor control compared to unfaced glasswool blanket.
What is the function of the aluminum foil facing on glass wool roll?
Moreover, the aluminum foil facing serves as a reflective vapor barrier that reduces radiant heat transfer. Consequently, it helps control condensation and improves overall thermal performance in HVAC and building applications.
Is aluminum foil faced glasswool blanket fire resistant?
Yes. The base glasswool blanket is inherently non-combustible. Therefore, TARCO Industry aluminum foil faced glasswool blanket achieves Euroclass A1 for the unfaced side and Euroclass C-s1,d0 for the faced variant per EN 13501-1.
Do your products comply with Australian and New Zealand standards?
Additionally, we test TARCO Industry aluminum foil faced glasswool blanket in accordance with AS/NZS 4859.1:2018 for thermal performance and fire hazard properties.
Are your products certified for the European market?
Furthermore, our FSK glass wool roll complies with EN 13162:2012+A1:2015 under the Construction Products Regulation (EU) No 305/2011.
Can you provide samples before bulk order?
In addition, TARCO Industry offers free samples of aluminum foil faced glasswool blanket for quality evaluation. Please contact our sales team for sample arrangements.
