CKL Collar Weld Studs

High-strength weld studs with integrated flange collar for superior load distribution in structural steel connections and composite construction applications.

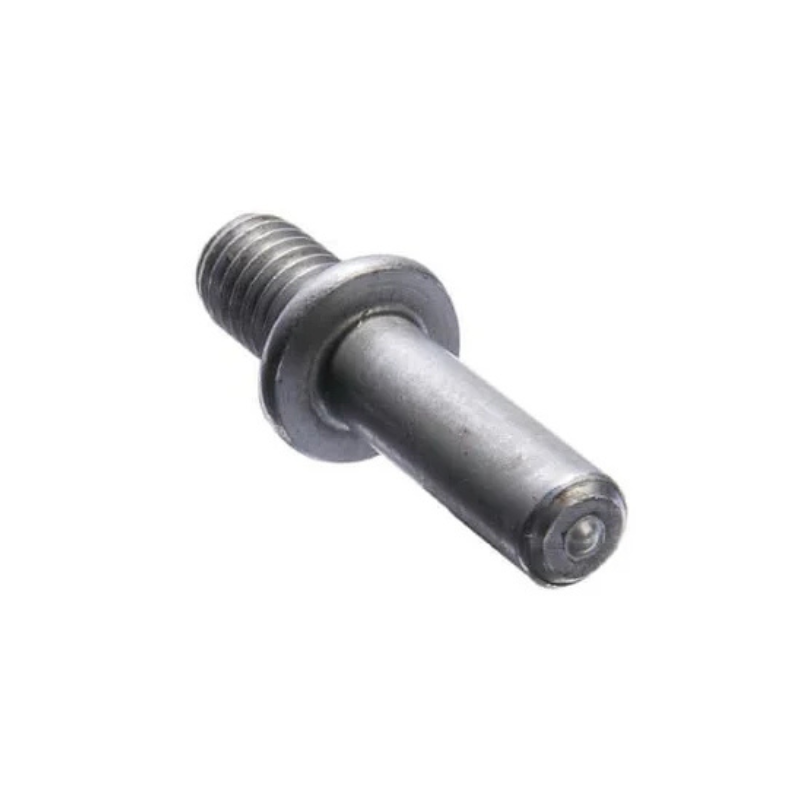

CKL Collar Weld Studs

Specialized weld studs with an integrated collar flange designed for applications requiring enhanced load transfer and superior weld integrity.

Superior Structural Connections with Integrated Collar Flange

CKL Collar Weld Studs represent an advanced evolution in welded fastening technology, featuring an integrated collar flange that provides enhanced load distribution and weld integrity. These specialized studs are engineered for applications where standard weld studs may not provide sufficient bearing surface or load transfer capability.

The unique collar design increases the effective weld area, resulting in stronger connections with improved fatigue resistance. CKL Collar Weld Studs are particularly valuable in composite construction, structural steel connections, and applications subject to dynamic or cyclical loading.

Enhanced Load Distribution

Collar flange provides larger bearing surface for superior load transfer and reduced stress concentrations.

Improved Weld Integrity

Increased weld area creates stronger, more reliable connections with better fatigue resistance.

Versatile Applications

Suitable for composite decks, structural connections, bearing plates, and specialized attachments.

Certified Quality

Manufactured to ISO 13918 standards with CE certification for European compliance.

Technical Specifications

CKL Collar Weld Studs are available in a range of sizes, materials, and configurations to meet specific project requirements.

Standard Specifications

Parameter	Specification	Standard/Code
Material Grade	4.6, 4.8, 8.8 (Carbon Steel) 304, 316 (Stainless Steel)	ISO 898-1, ASTM A108
Collar Diameter	1.5x to 2.5x Stud Diameter	Project Specific
Stud Diameter Range	10mm to 25mm (3/8″ to 1″)	ISO 13918
Length Range	50mm to 300mm (2″ to 12″)	Custom lengths available
Shear Capacity	Up to 150 kN (depending on diameter)	Tested per ISO 13918
Welding Process	Drawn Arc with Ceramic Ferrule	ISO 14555
Surface Finish	Plain, Galvanized, Stainless	ISO 1461 (HDG)

Improved Weld Integrity

Increased weld area creates stronger, more reliable connections with better fatigue resistance.

Understanding the CKL Collar Design

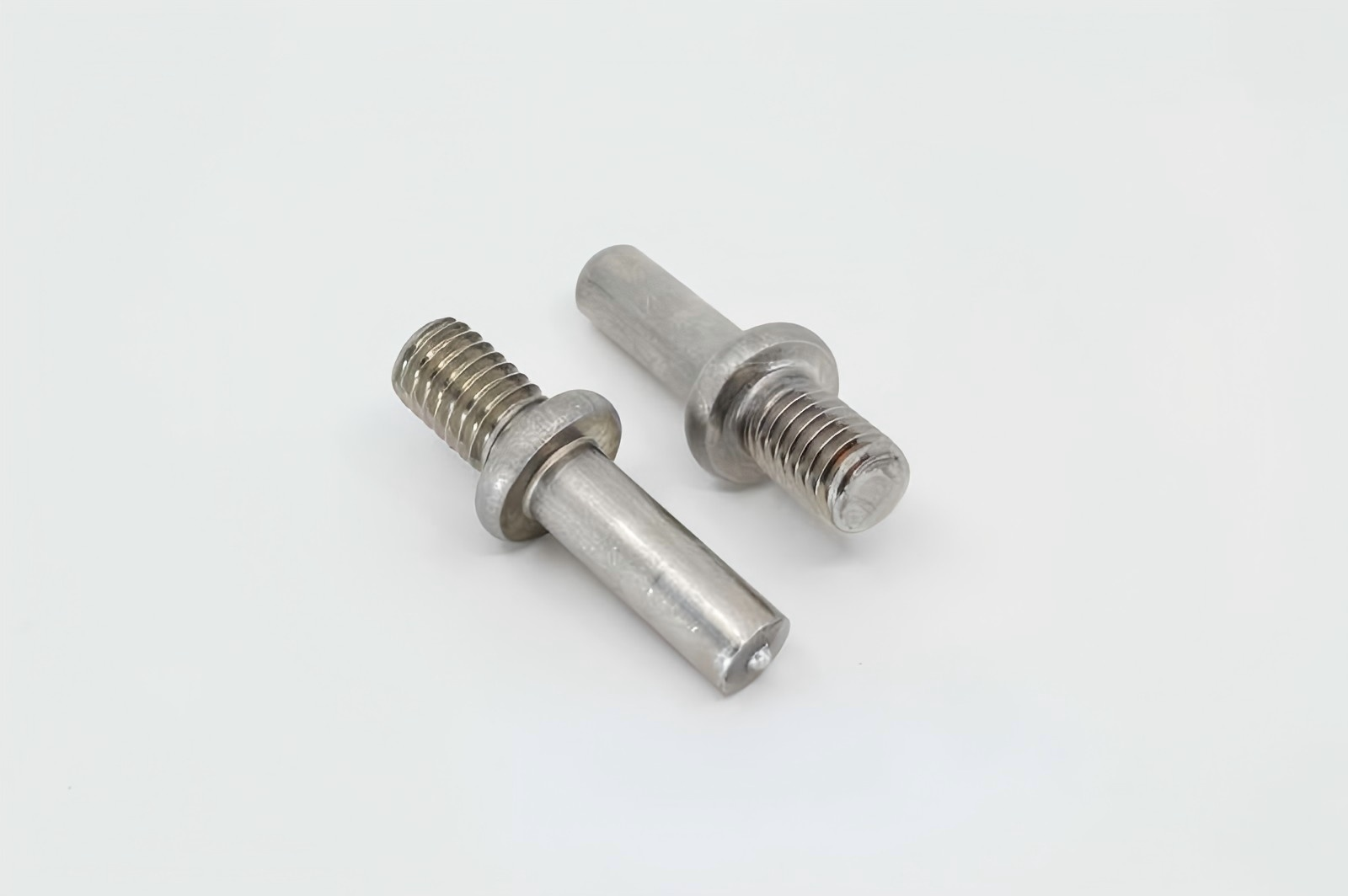

CKL Collar Weld Studs are characterized by their distinctive integrated collar – a flange-like extension at the base of the stud shaft. This collar serves multiple critical functions in structural connections:

Increased Weld Area: The collar provides additional surface area for welding, creating a stronger metallurgical bond between the stud and base material.
Improved Load Distribution: By spreading loads over a larger area, the collar reduces stress concentrations at the weld interface.
Enhanced Stability: The collar acts as a stabilizing element, reducing the potential for stud deflection under lateral loads.
Alignment Aid: During installation, the collar helps maintain proper stud alignment before and during welding.

The “CKL” designation refers to the specific collar configuration, which is optimized for drawn arc stud welding processes. These studs are available in various materials including low carbon steel, stainless steel, and weathering steel to meet diverse application requirements.

Primary Applications

CKL Collar Weld Studs are used in demanding structural applications where enhanced load transfer and connection integrity are critical.

Composite Steel-Concrete Construction

Ideal for shear connectors in composite floor systems and beams where the collar provides enhanced load transfer between steel and concrete elements.

Heavy Structural Connections

Used in moment connections, bracing attachments, and other critical structural joints where enhanced load distribution is required.

Bridge Construction & Infrastructure

Essential for composite bridge decks, bearing assemblies, and expansion joint attachments in bridge and infrastructure projects.

Industrial & Heavy Equipment

Used for attaching wear plates, liner systems, and equipment components in mining, material handling, and industrial facilities.

Advantages of CKL Collar Weld Studs

Superior Load Transfer Capacity

The integrated collar distributes loads over a larger area, reducing stress concentrations and increasing overall connection capacity by 20-40% compared to standard weld studs.

Enhanced Fatigue Resistance

Collar design improves weld integrity and reduces stress fluctuations at the weld interface, significantly extending fatigue life in dynamic loading applications.

Easier Quality Control

The collar provides a visual and tactile reference for proper stud placement and weld quality assessment during installation.

Reduced Installation Cost

While material cost may be slightly higher, the enhanced performance often allows for fewer studs per connection, reducing overall installation time and labor costs.

Performance Comparison

CKL Collar Weld Studs offer distinct advantages over standard weld studs in demanding structural applications.

Performance Aspect	CKL Collar Weld Studs	Standard Weld Studs	Advantage
Load Distribution	Excellent (Collar spreads load)	Good (Concentrated at stud base)	25-40% better
Fatigue Resistance	Superior	Good	3-5x longer life
Shear Capacity	Higher (Larger weld area)	Standard	20-35% increase
Installation Alignment	Easy (Collar guides positioning)	Requires careful alignment	Reduced skill requirement
Weld Quality Assessment	Easy to visually inspect	More difficult to assess	Better quality control
Material Cost	Higher (More material)	Lower	Collar studs cost 10-20% more
Total Installed Cost	Often lower (Fewer studs needed)	Higher (More studs required)	10-30% savings possible
