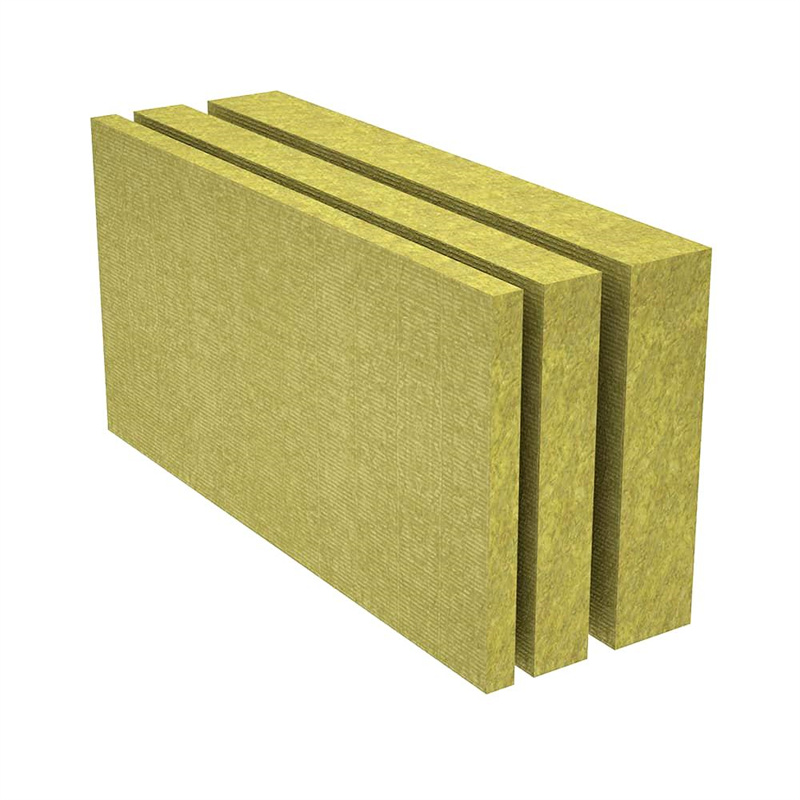

Cavity Rock Wool Panels
Optimal Thermal and Acoustic Insulation for Modern Constructions
UGC Rockwool Cavity Panels are a testament to advanced insulation technology, crafted from high-quality Rock Wool fibers and bonded with a thermosetting synthetic resin. These semi-rigid to rigid panels, of medium density, are meticulously manufactured to meet the precise standards of ASTM C-612 & EN 12162, ensuring both reliability and performance.
Designed for versatility, UGC Rockwool Cavity Panels are ideal for a wide array of applications, including residential buildings, educational institutions, healthcare facilities, and various governmental and commercial offices. Whether applied externally or internally, these panels offer exceptional thermal and acoustic insulation, enhancing the comfort and efficiency of any space.
Key Features:
- Superior Insulation: Provides outstanding thermal and acoustic insulation, significantly reducing energy consumption and noise levels.
- Durability: Exhibits stable physical and chemical properties, ensuring long-lasting performance without the need for maintenance.
- Health and Safety: Asbestos-free and non-combustible, with a flame spread index of <10, ensuring a safe environment.
- Eco-Friendly: Water-repellent and resistant to fungi, mold, or bacteria growth, contributing to a healthier indoor climate.
- Ease of Installation: Can be easily cut, handled, and installed, fitting snugly between walls or fixed externally with fasteners, under cladding layers like marble or aluminum.
Facing Options:
Available with or without facings, including Aluminium foil, Bitumen paper, black fiberglass veil, and polyethylene bags, Saudi Rockwool Cavity Panels are adaptable to various design and functional requirements.
Technical Specifications:
- Thermal conductivity at 24°C ranging from 0.034 to 0.038 (W/m K)
- Maximum use temperature of 750°C
- Negligible shrinkage at high temperatures, ensuring consistent insulation performance
- Noise Reduction Coefficient (NRC) of 0.7-1.0
|
THICKNESS (MM) |
DENSITY (KG/M3) FACING |
Facing |
ASTM CLASSIFICATION |
|
|
25 – 200 |
35 -128
|
None or Aluminum Foil |
Type II |
|
|
|
|
|
||
|
THERMAL CONDUCTIVITY |
0.038 – 0.034 |
EN 12667:2001 |
||
|
MAX. USE TEMPERATURE |
750 (C ) |
ASTM C411 |
||
|
RIGIDITY |
Rigid / Semi Rigid |
ASTM C1101 |
||
|
COLOR |
Yellowish |
visual |
||
|
COMPRESSIVE RESISTANCE |
2-20 |
ASTMC165 |
||
|
SHOT CONTENT |
<25% |
ASTM C612 |
||
|
CORROSIVENESS |
Noncorrosive |
ASTM C871 |
||
|
WATER VAPOR SORPTION |
<1 (Weight %) |
ASTM C1104 |
||
|
PH |
7-8′ |
BS 2972 SEC 22 |
||
|
WATER VAPOR RESISTANCE (M2HPA/MG) |
µ ≤3 |
ASTM C1104 |
||
|
FLAME SPREAD INDEX |
0 |
ASTM E84 |
||
|
SMOKE DEVELOPED |
0 |
ASTM E84 |
||
|
EURO CLASS FIRE CLASSIFICATION |
A1 |
EN IS0 13501-1 |
||
|
FUNGI RESISTANCE |
Does not encourage Fungi |
ASTM C665 |
||
|
NOISE REDUCTION |
0.65 -1.1 |
ASTM C423 |
||
